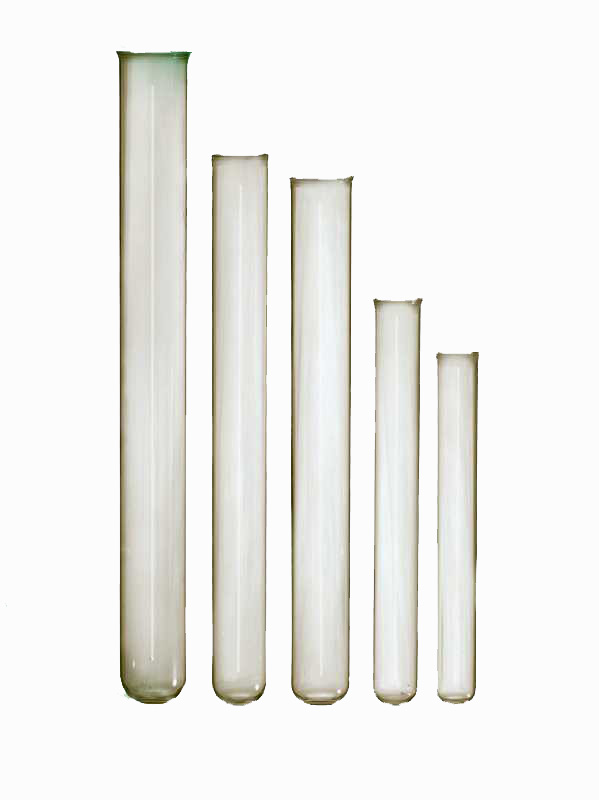

Laboratory glassware. Test tubes

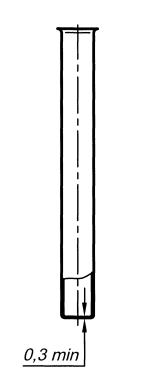

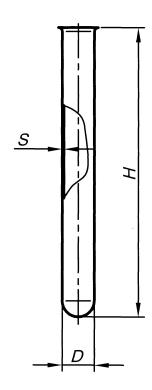

P1-type test tube

Technical specifications of Ukraine 00480945-009-99
D, mm  H, mm
S,mm,
not less
Nominal value Limit deviation Nominal value Limit deviation
7 0,5 40 5 0.4
8 80
10 1,0

50
100
60
12 100 0.45
13 0,5 120
1,0 120
14 0,5 62 2

0.5

1,0 100 5
120
14,75 0,25 150
16 1,0 150
160
200
17 +0,5

-1,0

150 0.6
20 1,0 200
20,5 200
21 200
25 200
NOTE: test-tubes production according to the approved with the customer is possible.

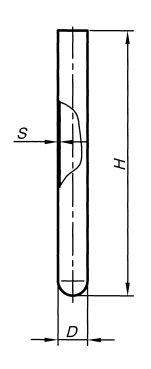

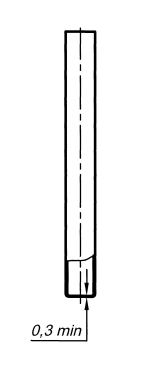

P2-type test tube

Technical specifications of Ukraine 00480945-009-99
D,mm H,mm
S,mm,
not less

Nominal value

Limit deviation Nominal value Limit deviation
7 0,5 60 5 0,4
8 40
80
9,5 90 2
145 +5
10 1,0 50 5
80
90
10,5 0,5 145 +5
12 1,0 60 5 0,5
13 120
14 100
120
14,75 0,25 150
15 1,0 150
16 150
160
180
200
17
+0,5
-1,0
150
19 1,0 150 0,6

180
20 200
20,5 200
21 200
24 200
NOTE: test-tubes production according to the approved drawing with the customer is possible.

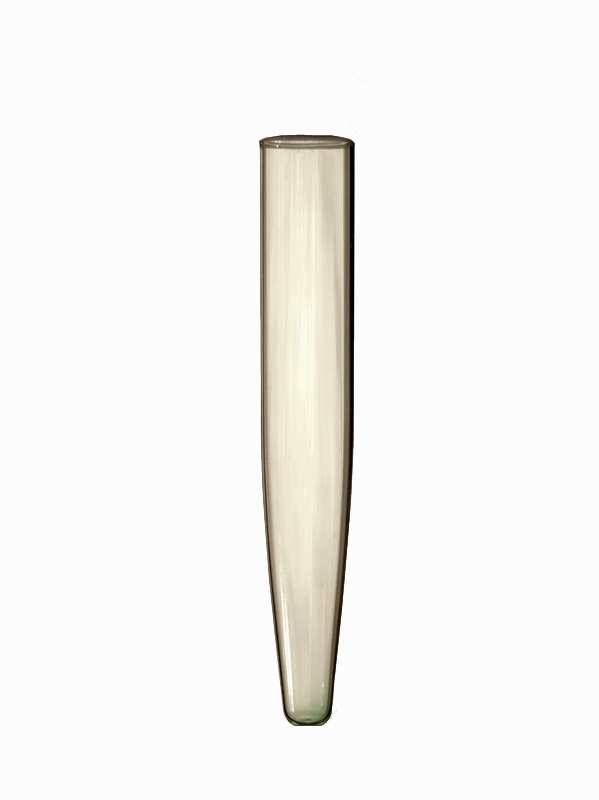

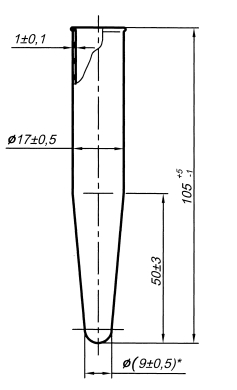

Test tube    P-1-10

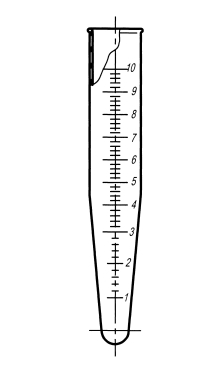

Test tube    P-1-10-0,2

Technical specifications of Ukraine 00480945-010-99
Conventional value Graduation mark
P-1-!0 -
P-1-10-0,2 0,2 ml
