Glass tubes are made of medical
glass medical grade USP-1.
Technical capabilities of equipment of JSC "PZMS" allow to
produce a glass tube with outer diameters ranging from 4 to 30
mm and wall thickness from 0,4 to 2,0 mm, length 1500 mm.

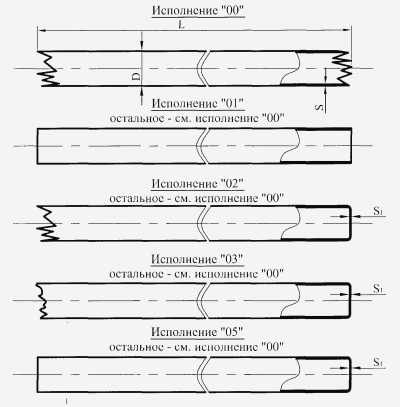

Depending on the type of processing ends tube is made of the
following performances:
«00» -without
treatment ends;
«01» -with
the melted ends with pre-fire segments;
«02» -with
a soldered end face and neobrbotannym others;
«03» -with
one end face of soldered and fused with another«05» -with
one end face of soldered and fused with other pre-fire
intervals |
Tube glass comes in the form of bundles of tubes, tied
with string and wrapped the ends in the wrapping paper.
Net weight of a beam less than 10 kg.
Example records indicate the
tubes when ordering:
The tube is soldered to one end
face and the other fused outer
diameter 10,75 mm with a
maximum
deviation of 0.15 mm wall
thickness of 0,5 mm with a
deviation of 0,05 perdelnym
glass brand USP-1:
"Tube
«03 »10,75 ± 0,15 x 0,5 ±
0,05 USP-1 TU U 00480945-004-96"
|
|
|
| | |
|
